Posted by: Mike (Musicman) on 12/14/07
This is a link to site that will allow you to play with different wheel
and tire size combinations.
www.rims-n-tires.com
Posted by: Charger George on 07/16/03
According to Technical Service Bulletin (TSB) D66-18 dated
January 14, 1966, group 22 - wheels-bearings and tires,"Models equipped
with the 426 cu. in. Hemi engine will be equipped with Blue Streak
Special four-ply nylon 7.75 x 14 tires mounted on 5.5K wheels." I just
love that technical jargon! To put it simply, the correct wheel size
for a '66 Hemi Charger is 14 x 5 and one half inch. These same wheels
were used on '66 Coronet Station Wagons, if you can find one of those
in the salvage yard! Lug nut torque is 65 ft-lbs.
Posted by: Sarge on 07/29/05
The bolt pattern is 5 bolts on a 4.5" bolt circle, typically
called "5 on 4.5"
|
Posted by: Musicman on the 66-67 Charger Forum on
11/18/07

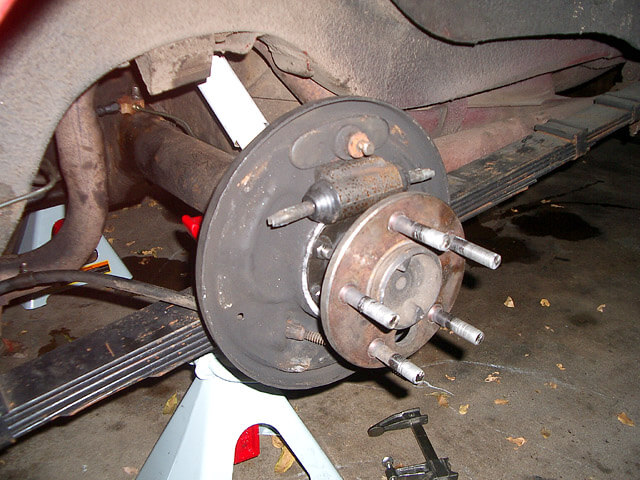

A detailed step-by-step description for removing left
-handed
wheel
studs and replacing with right-hand threads:
66-67Charger.com
message # 61782
This will help if you are needing longer studs or just
want to go with the "righty tighty" upgrade. The right side
wheels have left handed threads.
(Editor's
Note: 1970 was the last year for left handed threads on Mopar wheel
studs)
|
 |
Tires that fit wheels that fit with stock wheel wells:
|
| Front Wheel Size |
Front Tire Size |
Rear Wheel Size |
Rear Tire Size |
Submitted by: |
| 15 x 7 |
235/70 |
15 x 8 |
235/60 |
Joe Lingle |
| 15 x 7 |
235/75 |
15 x 7 |
235/75 |
David
Walker |
| 14 |
215/60 |
14 |
235/60 |
Jim in Norfolk |
| 15 x 6 (3" bksp) |
215/65 |
15 x 7 (3.5" bksp) |
245/60 |
Michael
Werner |
| 14 x 6 |
214/70 |
15 x 9 (3" bksp) |
245/60 |
Topher |
| 15 x 8 |
235 |
15 x 10 |
295 |
Diego |
| 17 x 8 |
245/45 |
17 x 9.5 |
295 x 40 |
Gordon |
|
|
18 x 10 |
295/35 |
Daniel |
|
Additional Wheels and Tires:
submitted by Sarge 09/08/05
|
| Owner |
Front Rim dia |
Front rim width |
Front offset |
Front tire width |
Front tire ratio |
Front Tire dia |
Rear Rim dia |
Rear rim width |
Rear Rim offset |
Rear tire width |
Rear tire ratio |
Rear tire dia |
Owner Comments |
| Pete |
17 |
7 |
4 |
215 |
50 |
21.23 |
17 |
9.5 |
5 |
315 |
35 |
21.34 |
barely inside rear |
| Gordo |
17 |
8 |
4.5 |
245 |
45 |
21.34 |
17 |
9.5 |
4.5 |
295 |
40 |
21.65 |
| Greg Rose |
|
|
4.5 |
|
|
|
|
|
4.5 |
|
50 |
|
| Jeff Brookings |
15 |
6 |
3 |
215 |
65 |
20.50 |
15 |
8 |
3.5 |
295 |
50 |
20.81 |
barely clear everywhere |
| Daniel |
|
|
|
|
|
|
18 |
10 |
|
295 |
35 |
22.06 |
|
|
