66-67 Dodge Charger Source Guide


Roof Stripe

Posted by Andy Markiewicz on 06/16/03

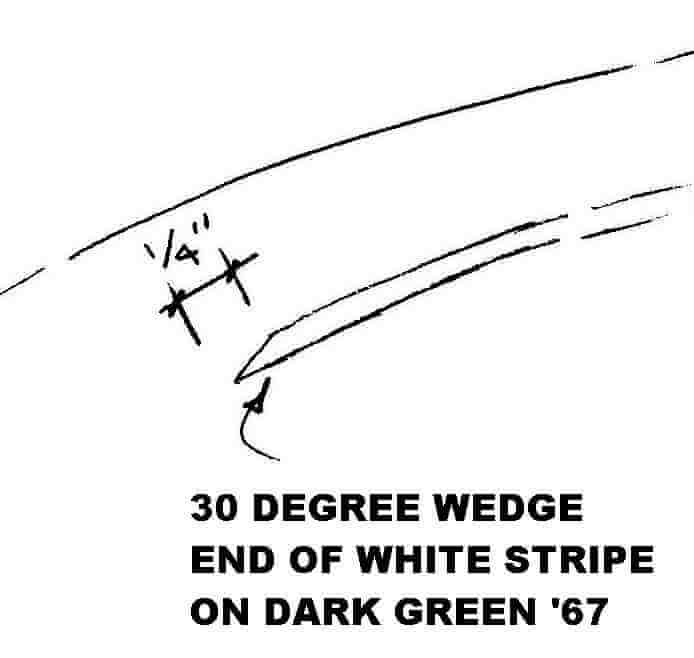

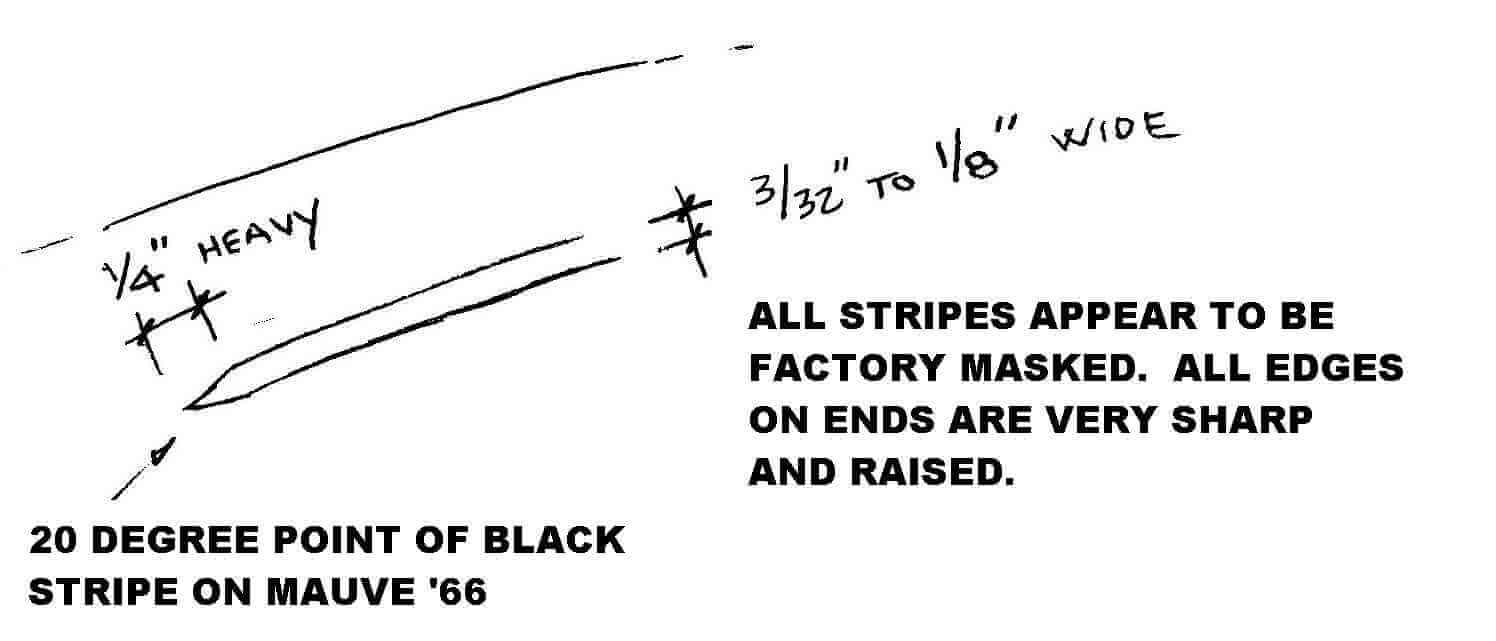

Here is the roof stripe sketch. I documented several original paint parts cars that I've had with what I believe to be factory stripes. The stripe on the '66 mauve car terminates at the back with a point, that is like a 'V' cut at the end. The other on a green '67 is simple cut wedge style, like a chisel point. I can't say this is a model year difference, or just a production variation.

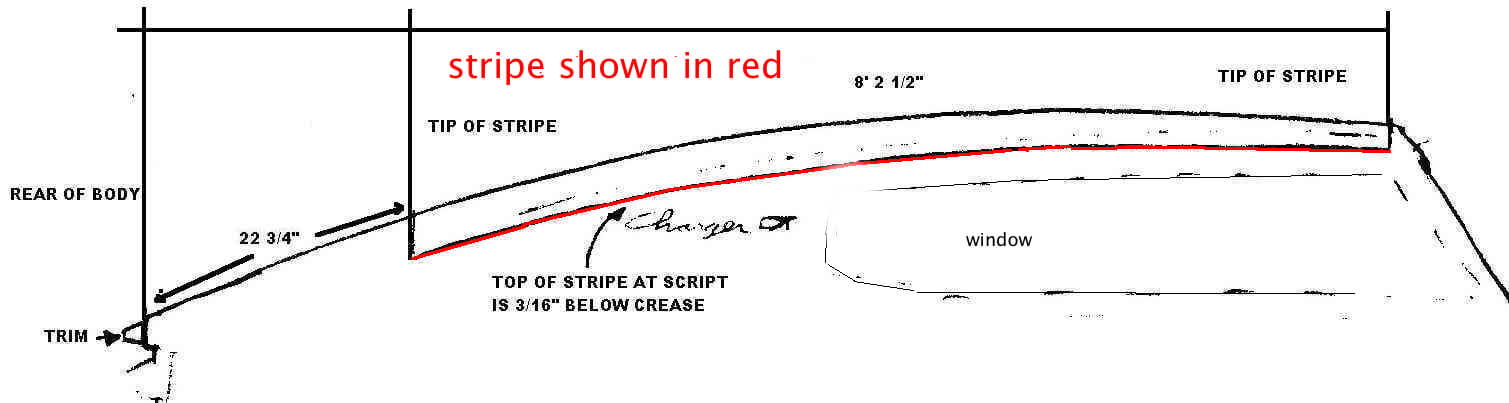

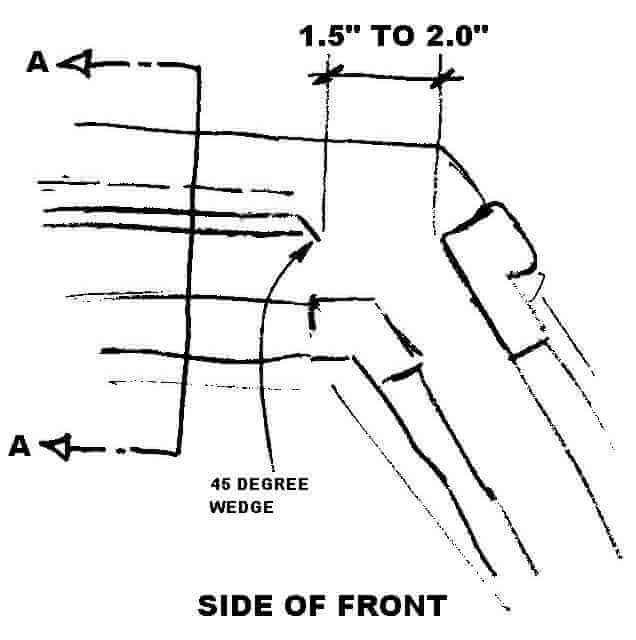

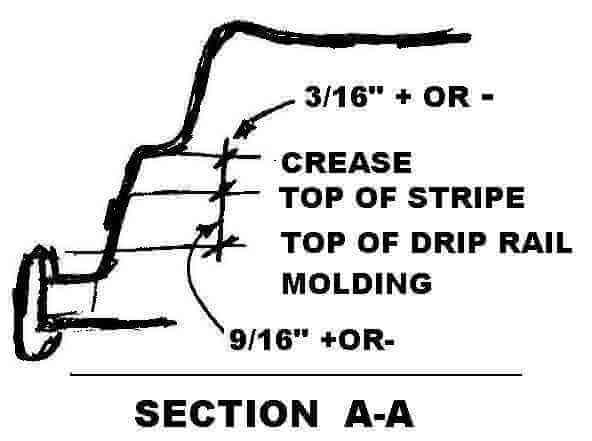

Here are 5 hand-drawn, detailed pictures of the stripes. A B C D E
Use your "back" button to return to this page.

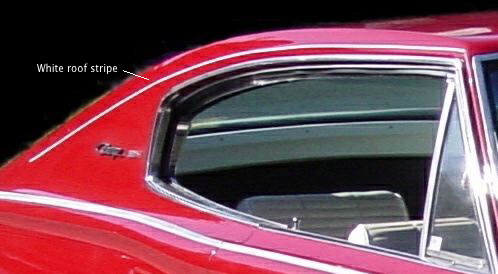

Here are shot's of Cora's Bloomington Ghost (original unrestored)
